CentIoT – HW-586 Zb2L3 1.2v-12v 18650 Li-ion Lithium Lead-acid Battery Capacity + Resistance Discharge Tester Capacity load Meter (9999Ah)
SKU:Out of stock
- Power supply voltage: DC 4.5 – 6V (micro USB connector); Operating Current: less than 70mA
- Discharge voltage: 1.00V-15.00V 0.01V resolution Termination voltage range: 0.5-11.0V Supported by current: 3.000A 0.001A resolution
- Maximum voltage measurement error: 1% + 0.02V Maximum current measurement error: 1.5% + – 0.008A
- Maximum battery capacity range: 9999Ah (1Ah = 1000mAh) greater value by shifting the decimal point to switch, when the display is less than 10Ah X.XXX, as shown above to achieve 10Ah XX.XX, and so on.

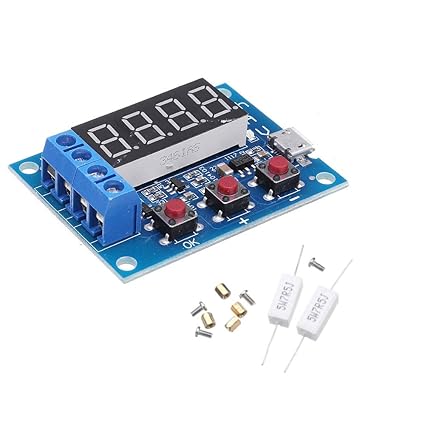

- Check the image for Instructions Manual; Maximum capacity statistics support 9999Ah (9999000mAh); <b>Package Included:</b></br> 1Pc x battery capacity tester</br> 1Pc x Load resistor</br>
₹449.00 ₹699.00
Out of stock
Compare

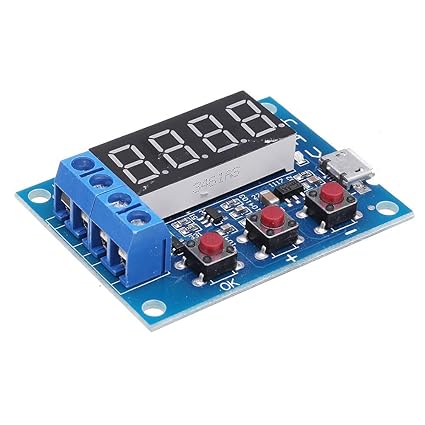

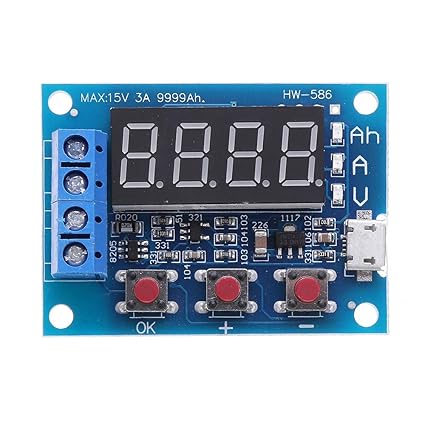

The CentIoT HW-586 ZB2L3 Battery Capacity and Resistance Discharge Tester is a versatile and highly accurate tool designed for measuring the true capacity, discharge performance, and internal resistance of various rechargeable batteries. Compatible with a wide voltage range from 1.2V to 12V, this tester supports popular battery types including 18650 Li-ion cells, lithium polymer (Li-Po), NiMH/NiCd rechargeable cells, and lead-acid batteries.
Equipped with a built-in electronic load and a clear digital display, the ZB2L3 tester provides real-time measurement of voltage, discharge current, battery capacity (up to 9999mAh/Ah), and internal resistance. The device automatically stops the discharge process once the battery reaches the preset cutoff voltage, ensuring safe and accurate testing without risk of deep discharge. Its high-efficiency load system ensures stable readings, making it ideal for hobbyists, technicians, and battery enthusiasts who require reliable battery-performance analysis.
| Weight | 0.15 kg |
|---|---|
| Dimensions | 11 × 11 × 4 cm |
